SWM-450N Automatic Single Steel Sprial Forming & Binding Machine fast speed suitable various sizes

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Set | 1 Set/Sets book binding machine (Min. Order)
Supply Ability:
10 Unit/Units per Week spiral binding machine
Port:
Shenzhen,China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Binding Machine
Computerized:
Yes
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HONGYUAN
Model Number:
SWM-450N
Voltage:
220V 50Hz 1Ph
Power(W):
220v
Dimension(L*W*H):
800*1400*1200mm
Weight:
238kgs
Certification:
CE ISO SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
name:
book binding machine
type:
binding machine
wire specifications:
1/4"-1"
certificate:
CE
factory:
ISO9001
item:
spiral binding machine
Max binding thickness:
20mm
working speed:
700-1300 books/hour
material:
metal&steel
Packaging & Delivery
Packaging Details

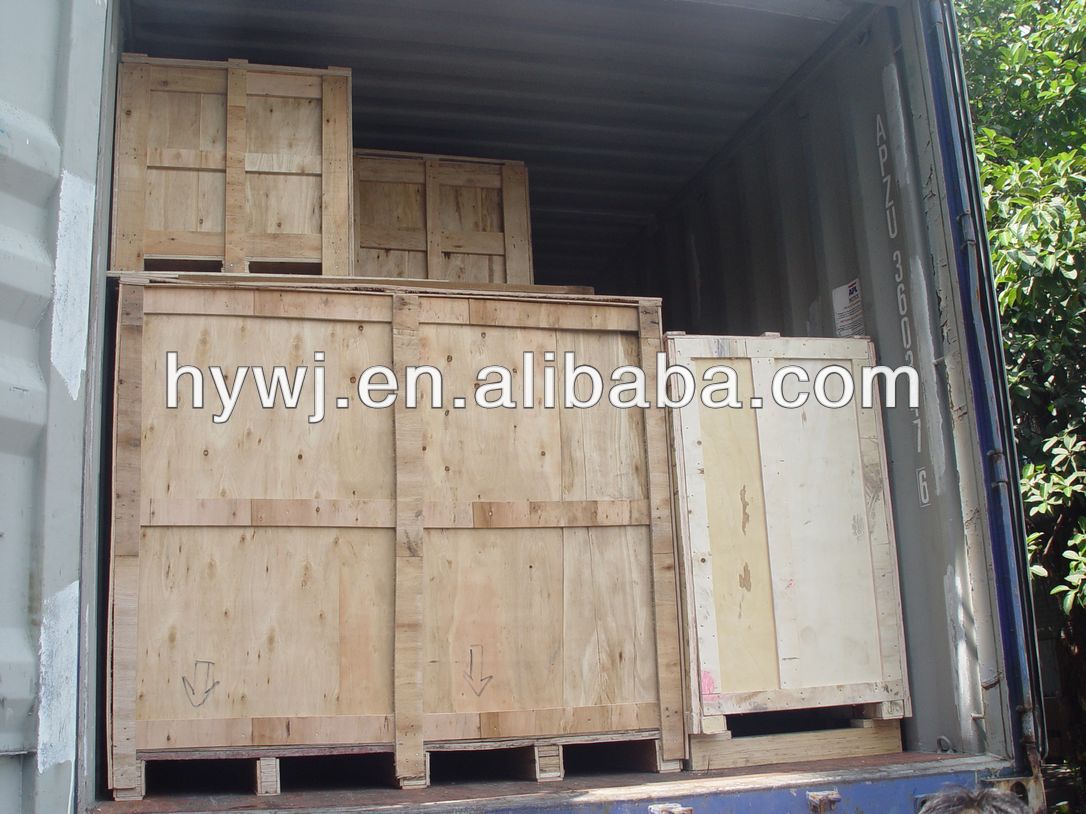

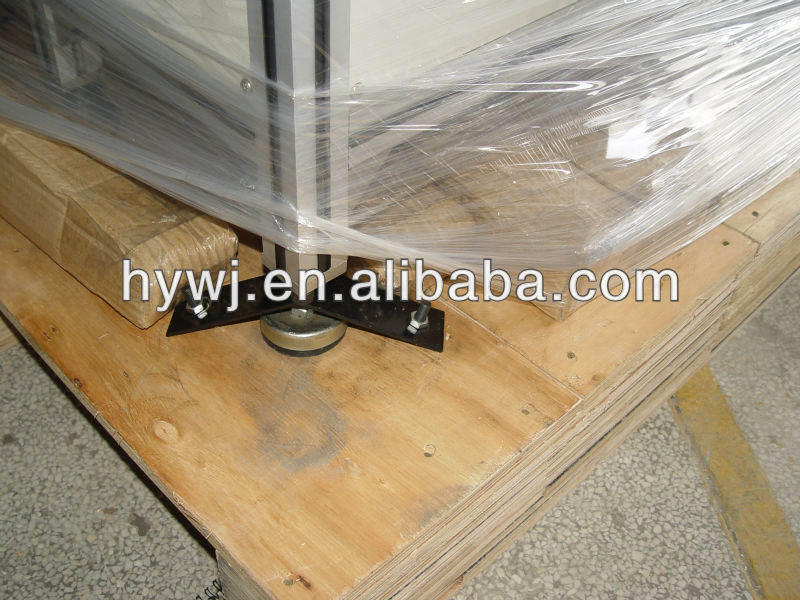

we use seaworthy export plywood box to pack book binding machine
Delivery Time
Shipped in 15 days after payment
Our Book Binding Machine has below features.
1.form various spiral 1/4"to1"
2.bind books same time
3.imported electric parts
4.CE certificate

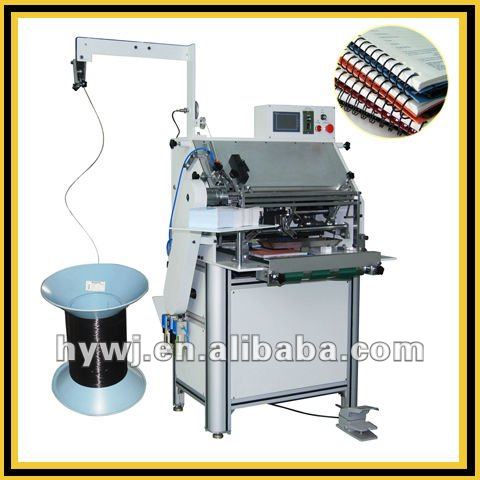

Single loop wire forming spiral binding machine
1. Forming different wires to spiral and binding onto the book at the same time
2. Through mould and tooth pitch can run different spec requirements
3. Book binding and wire forming spiral finished at the same time, convenience and efficiency
4. After book binding complete both ends can cut off and close up automatically.
5. Books auto drop onto the collection tank after binding complete, operator only leads it to the  orientation
6. Up to 3 seconds per book max. speed.

This book binding machine used abroad binding for notebook, exercise book, hang calendar, desk calendar,loose-leaf, etc. It can auto wire forming spiral, auto book cluster, auto close up, auto book drop and auto book collection. This book binding machine is a perfect high speed spiral binding machine.






Product Description



Specifications:



Model

SWM - 450N

Wire Manufacturing

1/4” - 1”

Max Thickness Binding

20 mm

Max Binding Width

450 mm

Min Binding Width

100 mm

Working Speed (N/hour)

700 - 1300 P

Power Supply

220 V/1 ph/50 HZ

Machine Dimensions

800mm × 1400mm × 1200mm

Machine Weight

238 KG



1. Forming different wires to spiral and binding onto the book at the same time.

2. Can meet different requirements by changing mold and tooth pitch.

3. Book binding and wire forming spiral finished at the sane time, convenience and efficiency.

4. After book binding complete both ends can cutoff and close up automatically.

5. Books auto drop onto the collection tank after binding complete, operator only leads it to the orientation.

6. Up to 3 seconds per book.

7. This machine used abroad binding for notebook, exercise book, hang calender,losse-leaf,etc. It can auto wire forming spiral, auto book cluster, auto close up, auto book drop and auto book collection. It is a perfect high speed spiral binding machine.















Company Information





  Shenzhen Hongyuan Stationery CO., LTD, established in 2003, is professional in manufacturing binding material&binding machine. Our mainly produce products are nylon coated double loop wire, metal single loop wire, plastic single spiral binder ring, plastic comb and metal calendar hangers. We also develop and design machine equipment: YO punching machine, double loop wire forming machine, double loop wire closing machine, full&semi-automatic machine,plastic spiral coil binding machine, wire o binding machine,corner rounding machine,index cutting machine and so on.

  Our products with high quality, reasonable price, fast shipping, have passed SGS and with CE certificate. Hongyuan expects your support and cooperation. If you have any question and advice, please feel free to contact us.



Contact us via  helen(at)szhywj.net



Packaging & Shipping









FAQ



Q: Are you a trading company or a factory?

A: We are a factory.

Q: What about the after-sales service about the machine?

A: We will send you instructions of the machine. If you still do not know how to use it, our workers can go to your place to help you. If some parts of the machine is broken, we can send you by express.

Q: What are your terms of payment?

A: 30% deposit, 70% balance before delivery. 30% deposit, the balance L/C. 100% in advance. Western Union.
