APM-400 automatic punching machine for binding book

FOB Reference Price:Get Latest Price
US $13,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Pneumatic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HongYuan
Model Number:
APM-400
Voltage:
380V
Power(W):
3KW
Weight:
700kgs
Dimension(L*W*H):
2200x1000x1300mm
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
type:
paper punching machine
punching type:
automatic
suitable for:
wire o,plastic coil,comb binding
suitable for binding:
double loop wire,plastic coil,binding comb
function:
hole punching machine
hole style:
round,oval,square
name:
hole punching machine
keyword:
automatic punching machine
Packaging & Delivery
Packaging Details
plywood box
Port
Shenzhen,China
Lead Time :
Shipped in 15 days after payment
Product Description



details for Model APM-400 Automatic Punching Machine for binding book,automatic punching machine



Advantages of automatic punching machine:

1. Punching speed up to 90 rpm

2. Max.punching width up to 400mm(with the conveyor option)

3. Practical utility. lower price.

4. Handle different paper thickness from 60gsm to 400gsm.





Features of automatic punching machine for binding book





1. Production efficiency is 3 times than labor
2. Can punch 5tons A4 paper one day
3. Central lubrication system,maintenance convenience
4. Replace mould only need 5 min
5. Can punch easy tear line.
6. Raise paper by stepper driver, thickness adjustable
7. The rank of paper keep same after punching





Technical parameters of automatic punching machine for binding book

Specification:

MODEL

APM-400

Max paper size with high pile reception unit (w*l)

400*380mm

Min.paper size with high pile reception unit (w*l)

135*125mm

Max.punching width with high pile perception unit

400mm

Max.paper thickness

2mm

Paper specifications

60-400g/m2

Max.pile height   mm

370

Max.cycle speed

8400cycles/hr

Normal working speed

7200cycles/hr

Min.working speed

1800cycles/hr

Stroke

13mm

Power supply

380v/3ph/50hz

 Power consumption

 3KW

dimensions with high pile reception unit( w*d*h)

 2200*1000*1300mm

 Net weight

 700kg

 Air compressor (not included)

 0.37KW

 air pressure

 4-6bar

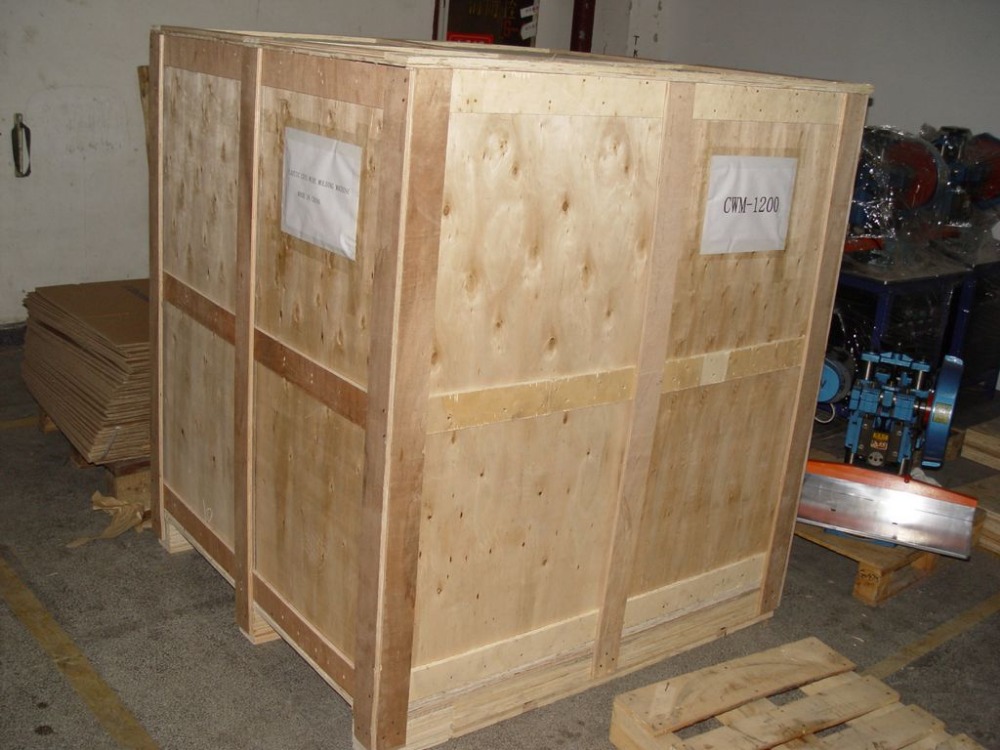

Packaging & Shipping

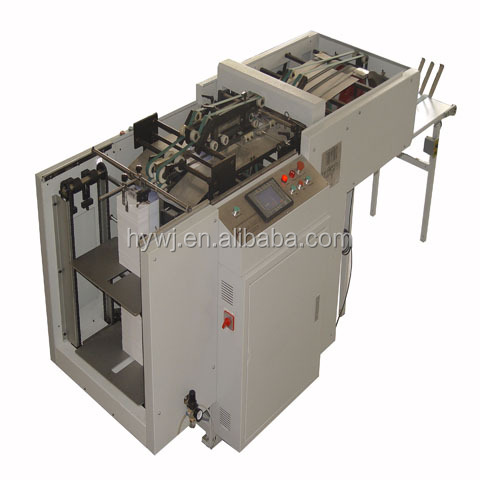

Automatic punching machine for binding book



Detailed image of automatic punching machine for binding book

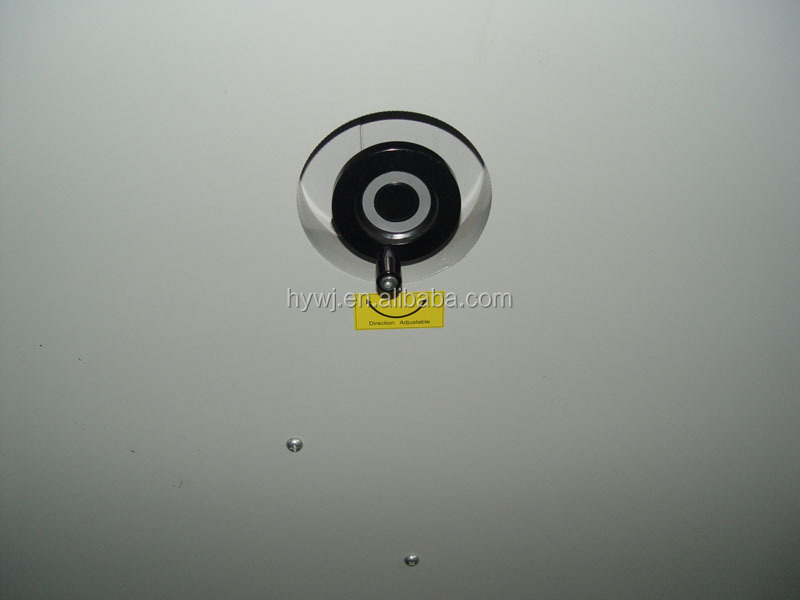

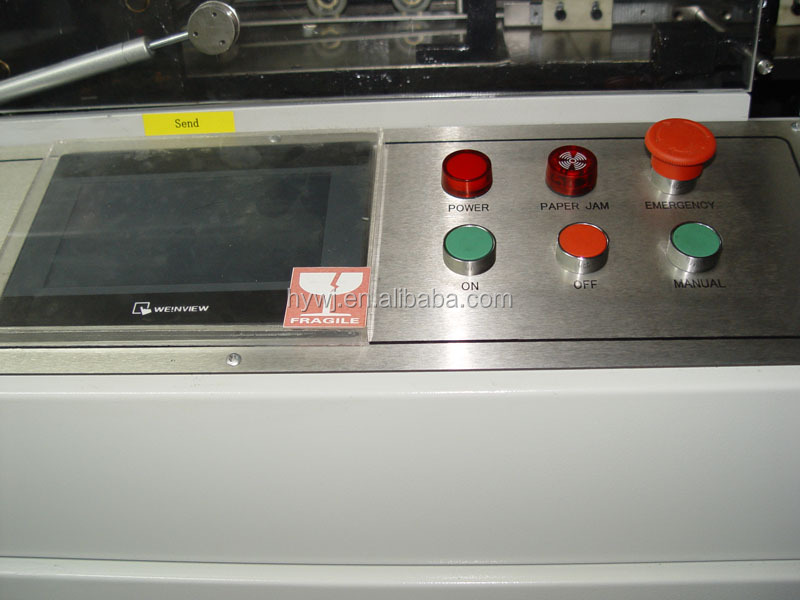

1. This automatic punching machine can be adjusted the punching thickness

    and puching speed through the touch screen.

2. The gripper head with shap V to protect the paper from damaging,

    it can pick up 2.0mm thickness every time equal to the thickness of 20 pages.



3.This automatic punching machine is equiped with original imported

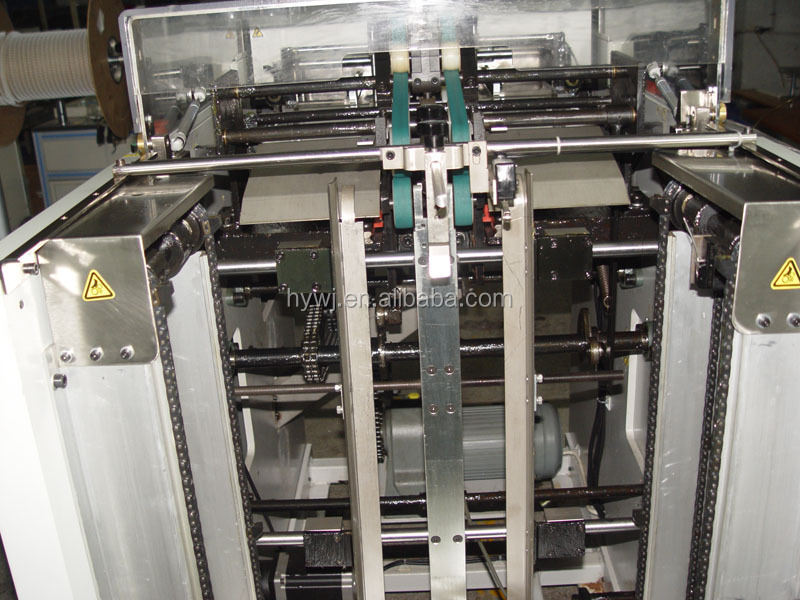

   belt, after thousands of times wear test, sturdy and durable.

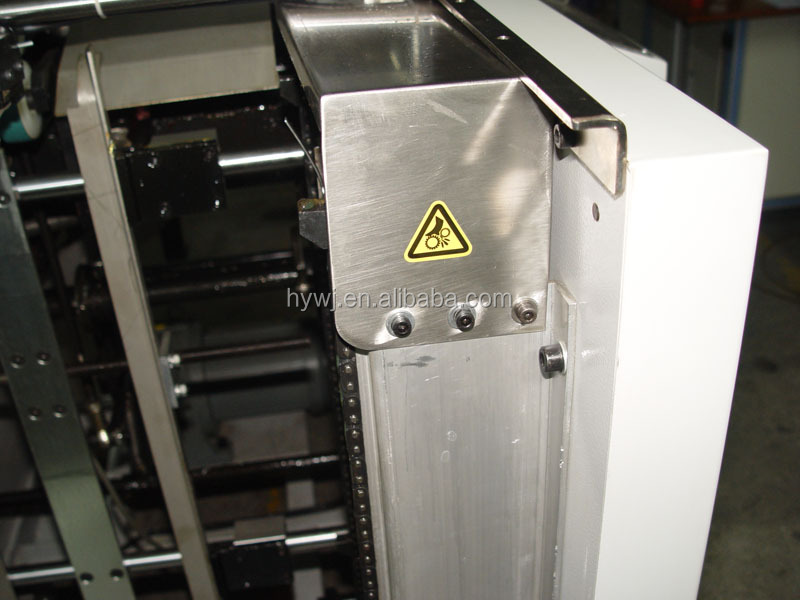

4. It also equiped with central lubrication system, maintenance convenience.



    Only one press, all chains realize maintenance.



    Reasonable maintenance helps to prolong service life of the punchine machine.

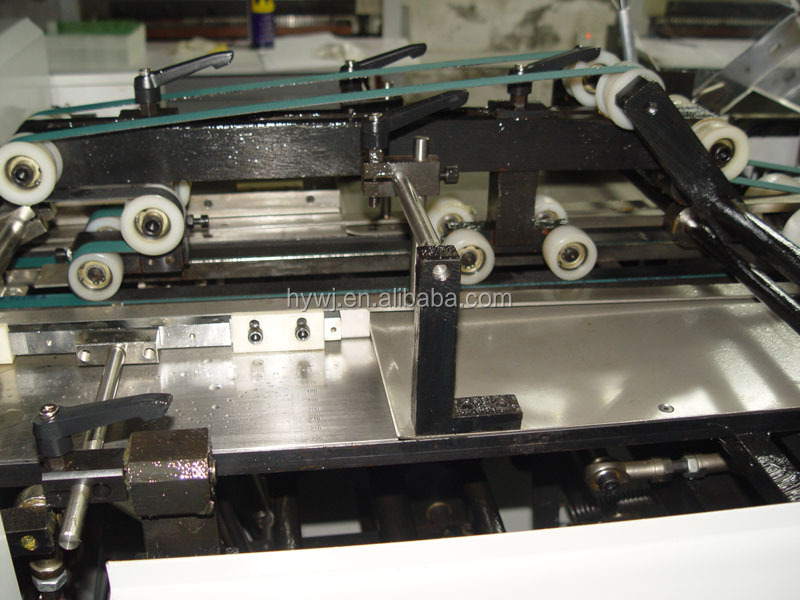

5. Before puching, fixing paper by three side at same time, ensure each page has

    same margins after punching.

    Adjusting convenience, convenient to replace different size paper.



6. Replacing mould only 5 mins. Punching different hole by replace different mould.



   Can make an easy tearing line.



   One mould can punch different size by taking out the pins.

7. Collecting waste in flank, saving space.

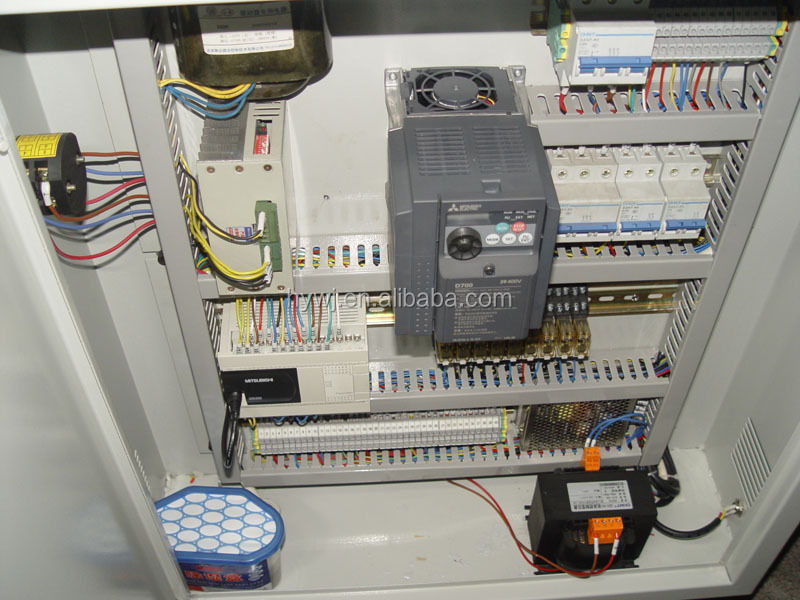

8.Using imported electric parts like Mitsubishi to assure long lifetime of automatic punching machine.
