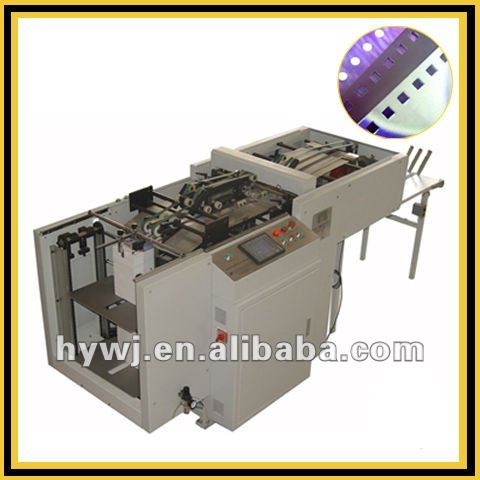

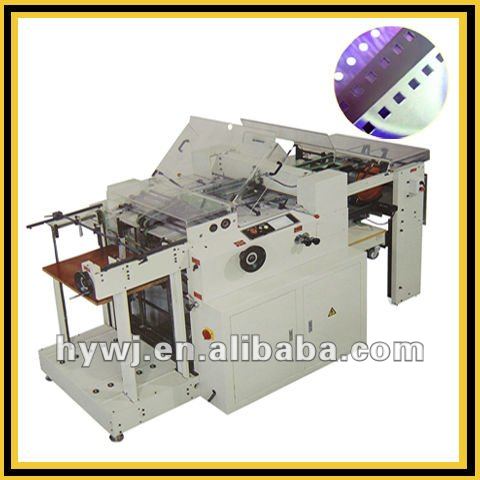

automatic punching machine

FOB Reference Price:Get Latest Price
US $20,000-60,000 / Sets | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Pneumatic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
hongyuan
Model Number:
APM-600
Voltage:
380V/3PH/50HZ
Power(W):
3KW
Weight:
1400KGS
Dimension(L*W*H):
2800MM X 1280MM X 1400MM
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
keyword:
automatic punching machine
Max.Paper thickness:
880mm
Max.Binding paper Width:
590mm
Power supply:
380V/3Ph/50Hz
Accessories:
One set of punching tool
Working speed:
8280 cycle/hr
Usage:
Paper Punching Machine
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
plywood box
Port
Shenzhen,China
Lead Time :
20 days after order confirmed

 automatic punching machine



Advantages:

* punching speed up to 138rpm

* max punching width up to 590mm (with the conveyor option)

* two discharge options (high pile reception unit or conveyor) are available

* handle different paper thickness from 60 gsm to 500gsm



automatic punching machine---Specifications

 Model

APM-600

 Max paper size with high pile reception unit with conveyor

530*500

Max paper size with conveyor

600*500

Min paper size with high pile reception unit with conveyor

140*220

Min paper size with conveyor

140*100

Max Punching width with high pile reception unit with conveyor

520mm

Max Punching width with conveyor

590mm

Max paper thickness

2mm

Max pile length

880mm

Max.cycle speed

8280 cycles/hour

Main Machine Dimensions

2800*1280*1400

Net Weight

1400kg

Power supply

380v/3ph/50hz



APM-600 04
